Super Arch Fender
Arch fenders tau qhia los txhim kho raws li kev ua haujlwm ntawm cylindrical fenders. Arch fenders muaj lub zog zoo dua / Kev sib piv quab yuam thiab pom zoo rau txhua hom kev siv. Qhov zoo ntawm cov fenders no pab kom dissipate qhov kev ntxhov siab sib npaug. Cov Compression Moulded fenders no yooj yim heev rau nruab thiab muaj kev saib xyuas tsis pub dawb raws li kev teeb tsa thiab siv tau zoo. Feem ntau peb Arch fenders nyiam rau cov nkoj me me mus rau nruab nrab. Arch Hom roj hmab fenders tau nruab rau ntawm cov chaw nres nkoj thiab cov qauv kom nqus tau lub zog sib tsoo ntawm lub nkoj thiab chaw nres nkoj thaum lub caij berthing. Cov roj hmab fender no nta cov tshuaj tiv thaiv tsis tshua muaj zog thiab siab zog nqus. Nws yog cov qauv tsim nyog, lub neej ua haujlwm ntev, ruaj khov thiab hloov tau yooj yim.
Dimension Rooj
| SUPER ARCH Rubber Fenders | |||||||||||||
| Fender loj | L (mm) | H (mm) | A (mm) | B (mm) | W (mm) | F (mm) | D (mm) | K (mm) | E (mm) | P * Q (mm) | Anchors | Qhov hnyav (Kg / m) | |
| GAN | GAP | ||||||||||||
| GAN/GAP 150 | 3000 | 150 | 108 | 240 | 326 | 98 | 16-20 | 50 | 500 | 20*40 | M16 | 28 | 35 |
| GAN/GAP 200 | 3000 | 200 | 142 | 320 | 422 | 130 | 18-25 | 50 | 500 | 25*50 | M20 | 48 | 62 |
| GAN/GAP 250 | 3500 | 250 | 164 | 400 | 500 | 163 | 20-30 | 62.5 | 500 | 28*56 | M24 | 69 | 90 |
| GAN/GAP 300 | 3500 | 300 | 194 | 480 | 595 | 195 | 25-32 | 75 | 500 | 28*56 | M24 | 107 | 128 |
| GAN/GAP 400 | 3500 | 400 | 266 | 640 | 808 | 260 | 25-32 | 100 | 500 | 35*70 | M30 | 185 | 217 |
| GAN/GAP 500 | 3500 | 500 | 318 | 800 | 981 | 325 | 25-32 | 125 | 500 | 42*84 | M36 | 278 | 352 |
| GAN/GAP 600 | 3000 | 600 | 373 | 960 | 1160 | 390 | 28-40 | 150 | 500 | 48*96 | M42 | 411 | 488 |
| GAN/GAP 800 | 3000 | 800 | 499 | 1300 | 1550 | 520 | 41-50 | 200 | 500 | 54*108 | M48 | 770 | 871 |
| GAN/GAP 1000 | 3000 | 1000 | 580 | 1550 | 1850 | 650 | 50-62 | 250 | 500 | 54*108 | M48 | 1289 | 1390 |
Nta
1. Haum rau ntau yam kev siv
2. Ib qho yooj yim tsim
3. Muaj zog thiab tawv tawv
4. tuaj yeem ntsia tau ob qho tib si ntsug thiab kab rov tav
Kev kos duab
Chaw
Cov ntawv pov thawj

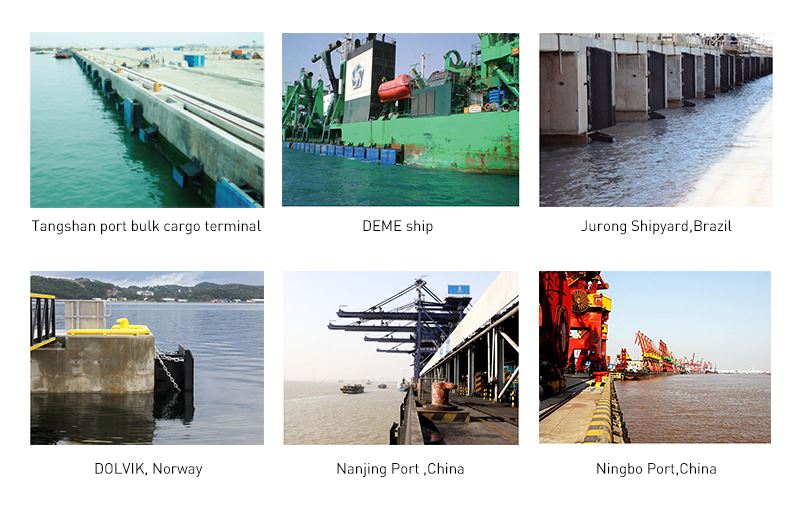

Case Reference
