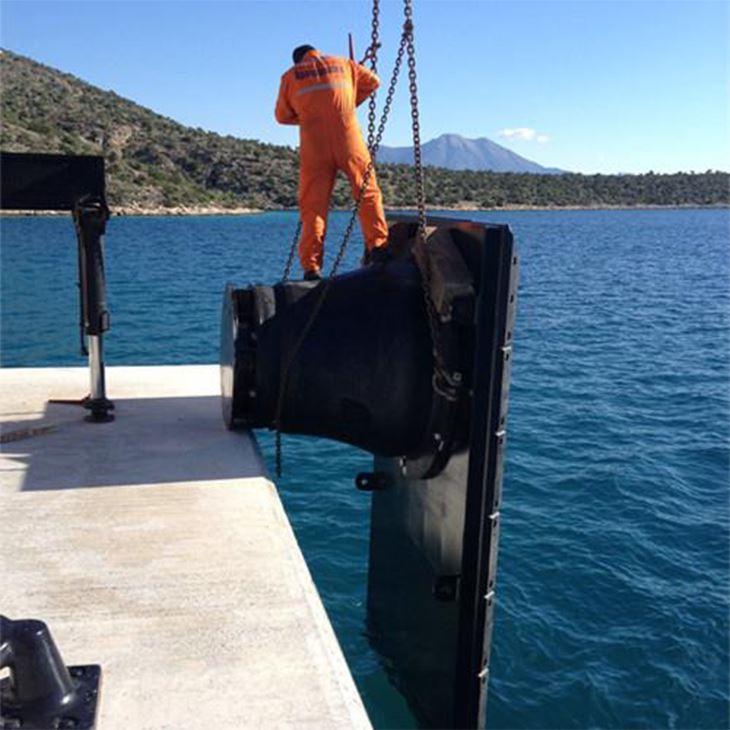

Cone Fender

Cone fender yog qhov ua tau zoo dua hauv kev nqus hluav taws xob nrog tib qhov tshwj xeeb. Nyob rau hauv cov xwm txheej zoo sib xws ntawm lub zog nqus ntawm cov roj hmab conical fender, qhov me me conical roj hmab fender tuaj yeem hloov cov roj hmab loj ntawm lub xov tooj ntawm tes.

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

Lub khob hliav qab Fender muaj lub zog nqus siab tshaj plaws thiab lub zog qis tshaj plaws. Kev ua haujlwm siab ua rau nws muaj kev ua tau zoo heev thiab tus nqi qis dua. Cov duab conical ua rau lub cev fender ruaj khov nyob rau hauv txhua qhov kev sib txuas ntawm axial, shear thiab angular loading. Yog li ntawd, nws yog qhov zoo tagnrho rau cov berths uas loj berthing ces kaum thiab hnyav hnyav yuav tsum tau nyob. Cone fenders yog dav siv nyob rau hauv ntau hom terminals thiab hauv qab no yog ib co ntawm nws cov kev ua tau zoo:

- Ua tau zoo geometry

- Muaj zog, zoo tsim qauv

- Cov duab ruaj khov resists shear

Specifications

SUPER CONE RUB FENDERS
Fender size	H (mm)	ØB (mm)	ØC (mm)	ØD (mm)	ØE (mm)	F	ØG (mm)	Qhov hnyav (kg)
GCN 600 H	600	900	810	510	390	6 xm24	6x30	235
GCN 700 H	700	1050	945	595	455	6 tx30	6x38	350
GCN 800 H	800	1200	1080	680	520	6 tx36	6x44	540
GCN 900 H	900	1350	1215	765	585	6 tx36	6x44	765
GCN 1000 H	1000	1500	1350	850	650	6 tx42	6x50	1050
GCN 1100 H	1100	1650	1485	935	715	6 tx42	6x50	1400
GCN 1150 H	1150	1725	1550	998	750	6 tx42	6x50	1600
GCN 1200 H	1200	1800	1620	1020	780	8 tx42	8x50	1950
GCN 1300 H	1300	1950	1755	1105	845	8 tx48	8x56	2400
GCN 1400 H	1400	2100	1890	1190	930	8 tx48	8x60	3060
GCN 1600 H	1600	2400	2158	1360	1040	8 tx48	8x60	4600
GCN 1800 H	1800	2700	2428	1528	1170	10 tx56	10x74	6600
