Mooring Bollard With Professional Design
Mooring Bollard
Mooring Bollard

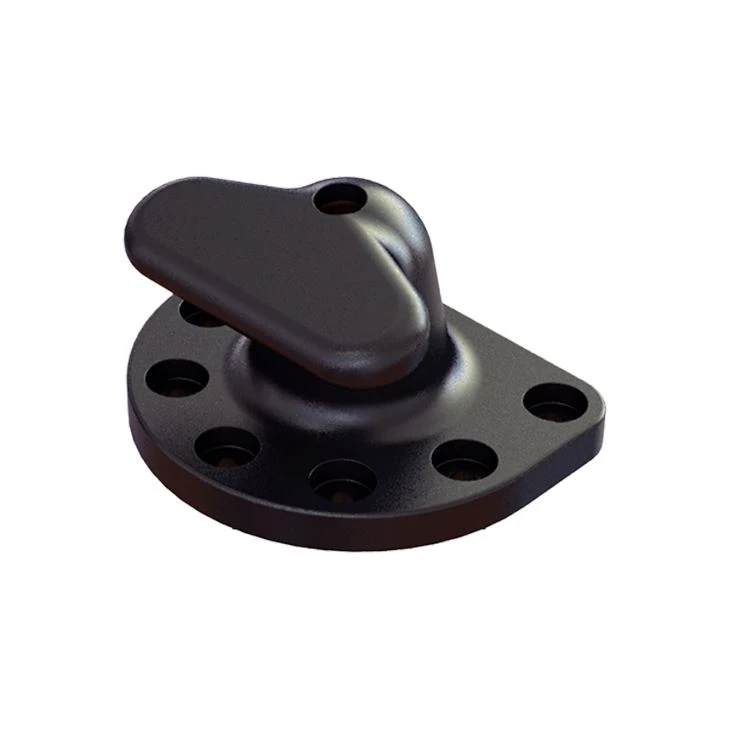

T mooring bollard

Mooring Bollard

Marine mooring bollard yog ib qho khoom siv rau ntawm lub nkoj lub lawj lossis quay. Nws yog ib txoj hauv kev yooj yim thiab muaj txiaj ntsig los ua kom tau raws li cov kev xav tau ntawm mooring thiab muaj kev nyab xeeb ntawm cov nkoj nrog rau jetties, berths, wharves thiab dolphins hauv cov chaw nres nkoj thiab chaw nres nkoj. Nws yog welded los ntawm tsim nyog steel hlab nrog daim hlau.

Xa kev nug

Tsham tam sim no

Khoom Taw qhia

Ballard yog feem ntau ua los ntawm cov hlau los yog cov hlau nrum, thiab cov lus qhia tshwj xeeb 50KN txog 3000KN. Marine bollards yog ib txoj hauv kev yooj yim thiab raug nqi kom ua tiav cov kev xav tau mooring. Nws yog qhov chaw thauj tog rau nkoj rau cov kab mooring yuav tsum tau kho kom muaj kev nyab xeeb ntawm cov nkoj nrog jetties / quay, berths, wharves thiab dolphins hauv cov chaw nres nkoj thiab chaw nres nkoj.

Specifications

T BOLLARDS
Dimension	Bollard muaj peev xwm (tonnes)
Dimension	15T	30T	50T	80T	100T	150T	200T
A	40	40	50	70	80	90	90
B	235	255	350	380	410	435	500
C	340	350	500	550	600	700	800
D	410	450	640	640	790	900	1000
E	335	375	540	550	640	750	850
F	80	100	150	160	175	200	225
G	155	175	250	250	325	350	375
ØI	160	200	260	280	350	400	450
J	205	225	320	320	395	450	500
K	130	150	220	230	245	300	350
L1°	30°	30°	30°	15°	10°	10°	0°
L2°	-	-	-	45°	40°	40°	36°
L3°	60°	60°	60°	N/A	80°	80°	72°
Bolts	M24	M30	M36	M42	M42	M48	M56
Bolt ntev	500	500	500	800	800	1000	1000
P*	60	60	70	90	100	110	110
Qty	5	5	5	6	7	7	8
ib :mm
