10T-300T Mooring Bollard
Lub bollard yog tsim thiab xaiv raws li lub peev xwm berth thiab cov qauv ntawm lub wharf kom tau raws li qhov yuav tsum tau muaj kev nyab xeeb, txhim khu kev qha thiab yooj yim rau siv rau docking, berthing, mooring thiab tig ntawm lub nkoj. Lub bollard muaj xws li casing, ntsia liaj qhov rooj, txiv ntseej, ntxhua khaub ncaws, thauj tog rau nkoj phaj thiab core packing.
Xa kev nug
Tsham tam sim no
Khoom Taw qhia

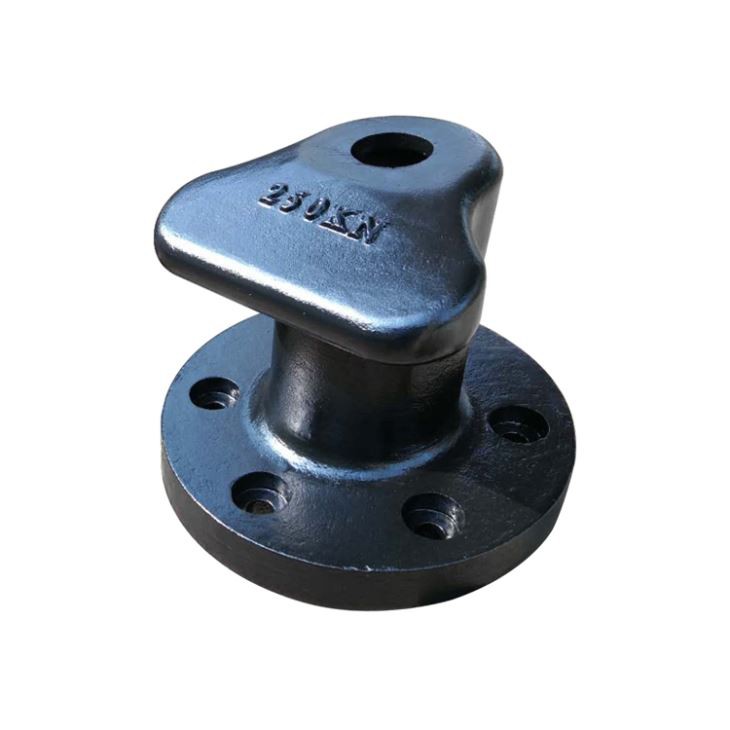

RGEC' tiam tshiab ntawm T Lub Taub Hau Bollards muab lub zog loj zog bollard uas tuaj yeem siv rau ntau qhov kev teeb tsa.
RGEC tuaj yeem muab T lub taub hau bollards txog li 300 tuj muaj peev xwm nyob rau hauv cov ntaub ntawv cam khwb cia hlau lossis cam khwb cia hlau.
Specifications
| T BOLLARDS | |||||||
| Dimension | Bollard muaj peev xwm (tonnes) | ||||||
| 15T | 30T | 50T | 80T | 100T | 150T | 200T | |
| A | 40 | 40 | 50 | 70 | 80 | 90 | 90 |
| B | 235 | 255 | 350 | 380 | 410 | 435 | 500 |
| C | 340 | 350 | 500 | 550 | 600 | 700 | 800 |
| D | 410 | 450 | 640 | 640 | 790 | 900 | 1000 |
| E | 335 | 375 | 540 | 550 | 640 | 750 | 850 |
| F | 80 | 100 | 150 | 160 | 175 | 200 | 225 |
| G | 155 | 175 | 250 | 250 | 325 | 350 | 375 |
| ØI | 160 | 200 | 260 | 280 | 350 | 400 | 450 |
| J | 205 | 225 | 320 | 320 | 395 | 450 | 500 |
| K | 130 | 150 | 220 | 230 | 245 | 300 | 350 |
| L1° | 30° | 30° | 30° | 15° | 10° | 10° | 0° |
| L2° | - | - | - | 45° | 40° | 40° | 36° |
| L3° | 60° | 60° | 60° | N/A | 80° | 80° | 72° |
| Bolts | M24 | M30 | M36 | M42 | M42 | M48 | M56 |
| Bolt ntev | 500 | 500 | 500 | 800 | 800 | 1000 | 1000 |
| P* | 60 | 60 | 70 | 90 | 100 | 110 | 110 |
| Qty | 5 | 5 | 5 | 6 | 7 | 7 | 8 |
| ib :mm | |||||||
Kev kos duab

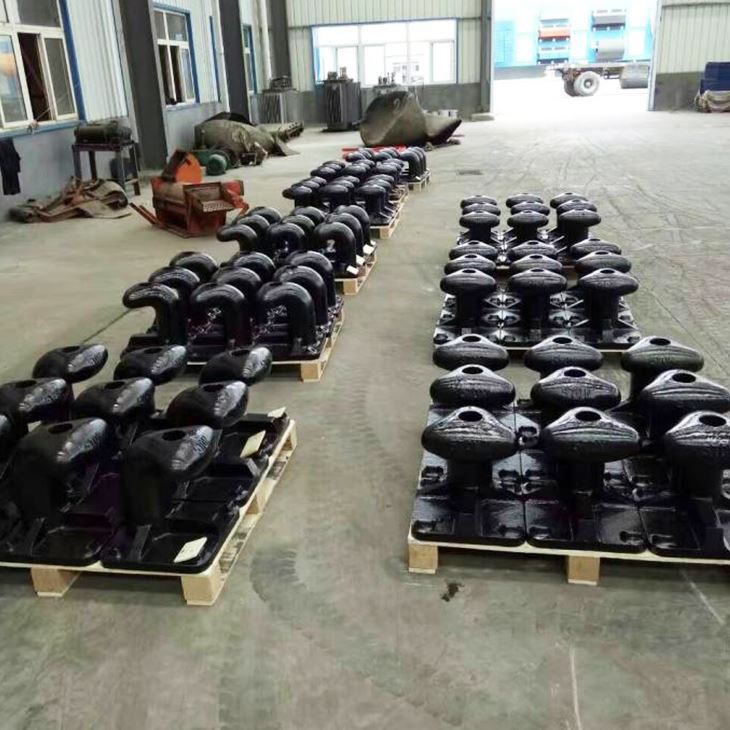

Chaw
Cov ntawv pov thawj
Kev tshuaj ntsuam xyuas

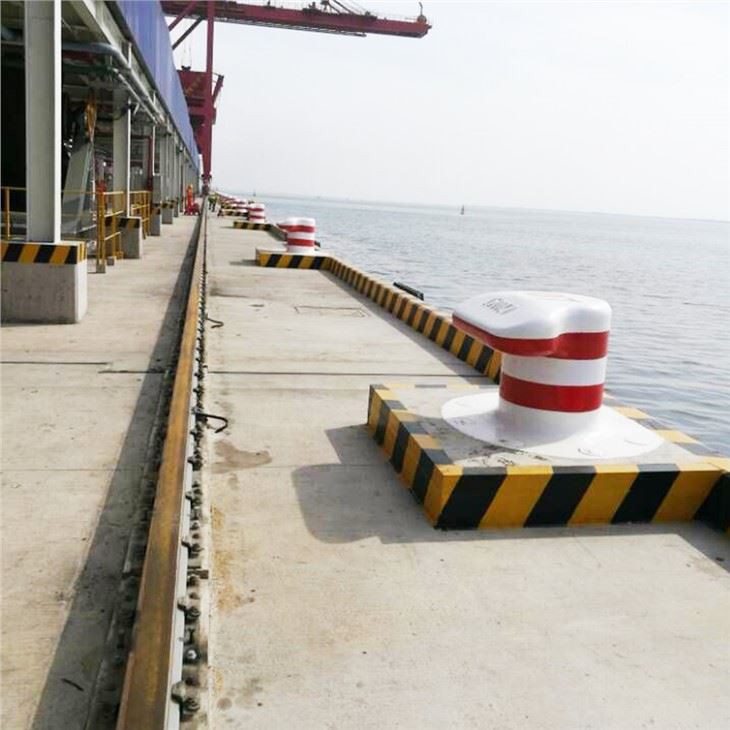

Case Reference
